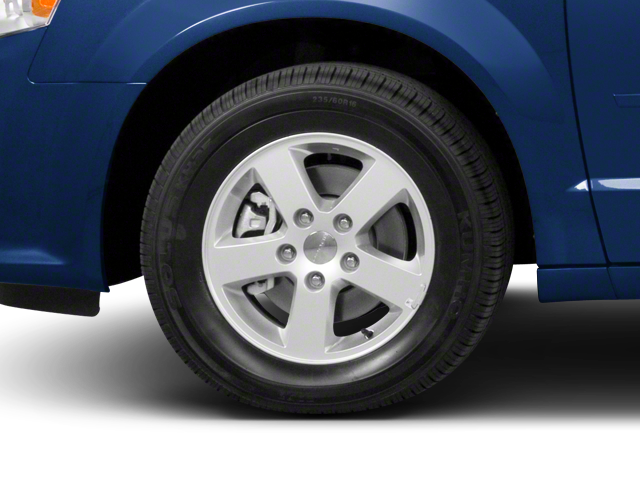

• 16" x 6.5" steel wheels
• P235/60R16 all-season BSW tires
• 16" wheel covers
• Compact spare tire
• Tire carrier winch
• Body-color fascias
• Body-color bodyside molding
• Belt moldings
• Black/bright grille
• Halogen quad headlamps
• Headlamp time-delay off
• Fold-away heated pwr mirrors
• Sunscreen glass
• Variable intermittent windshield wipers
• Rear window wiper/washer
• Manual right sliding door w/glass
• Manual left sliding door w/glass
• Body-color door handles

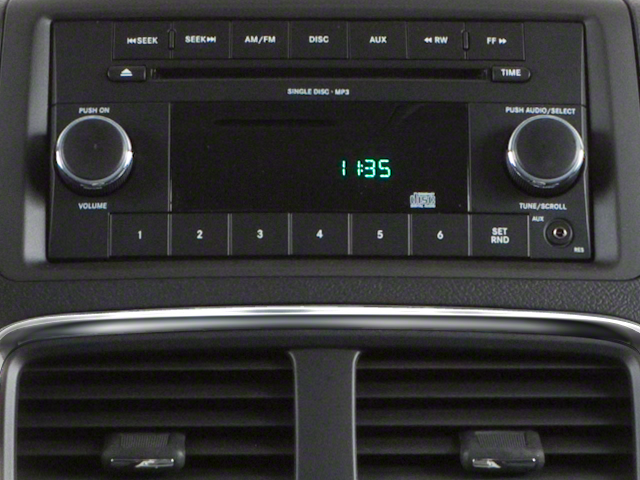

• Media center 130 -inc: AM/FM/stereo w/CD/MP3 player
• (6) speakers
• Fixed long mast antenna
• Audio input for mobile devices

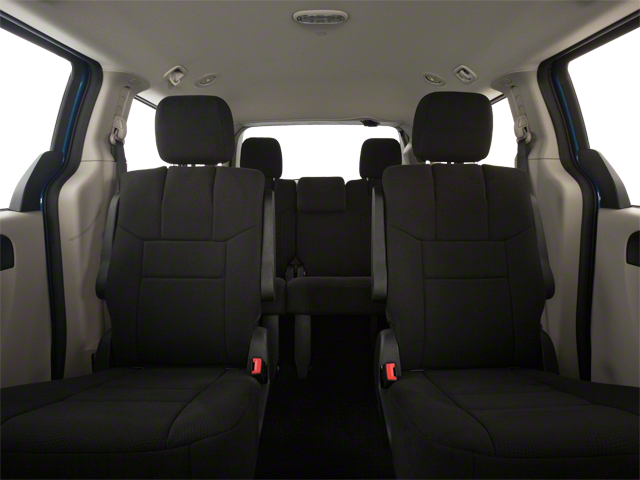

• 2nd row fold-in-floor bucket seats -inc: 3rd row Stow 'N Go w/tailgate seats

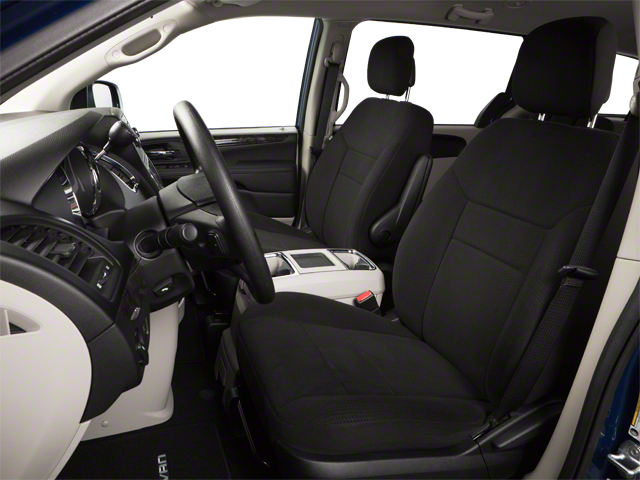

• Front cloth low-back bucket seats
• Manual adjustable seats
• Active head restraints

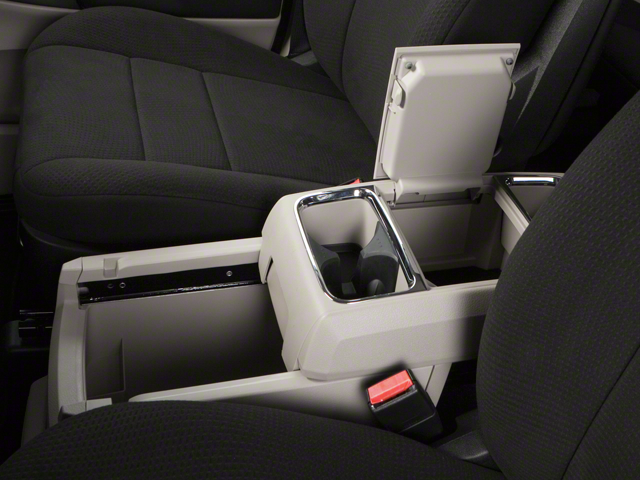

• Floor console w/cupholder
• Carpet flooring
• Easy-clean floor mats
• Body-color sill applique

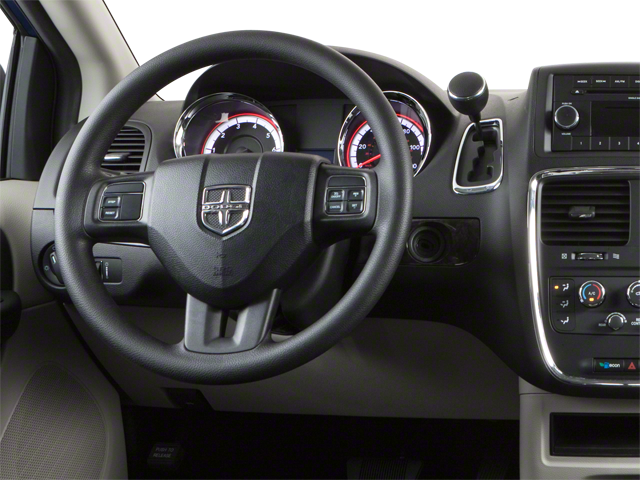

• Luxury steering wheel
• Tilt/telescopic steering wheel column
• Steering wheel mounted audio controls

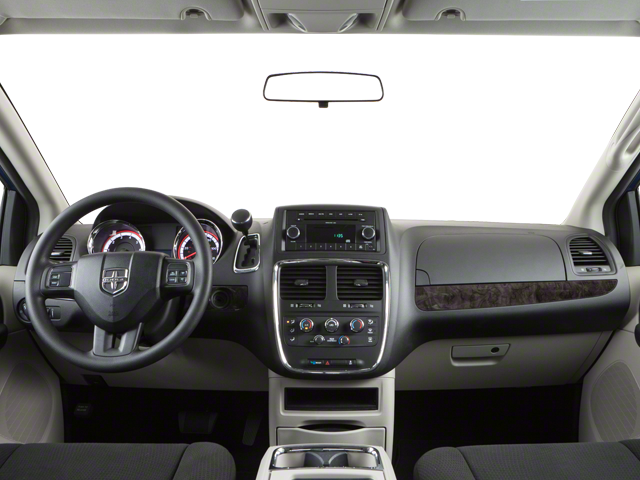

• Instrument panel
• Instrument cluster w/tachometer
• Lower instrument panel cubby bin
• 120 MPH primary speedometer
• Outside temp display

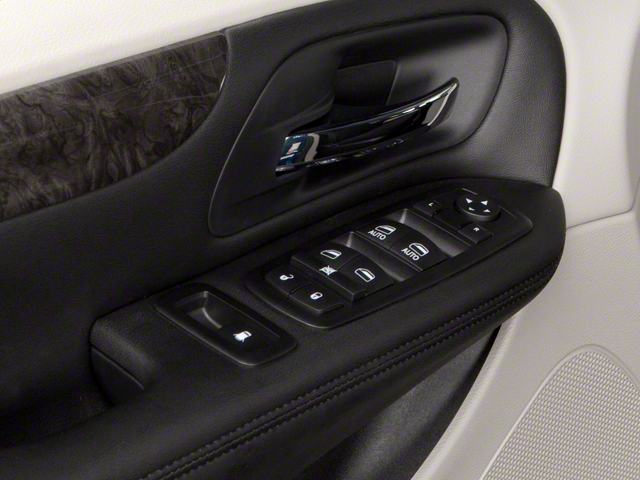

• Pwr windows w/driver-side 1-touch feature
• Pwr locks
• Non adjustable pedals
• Keyless entry w/immobilizer
• Tip start
• Speed control

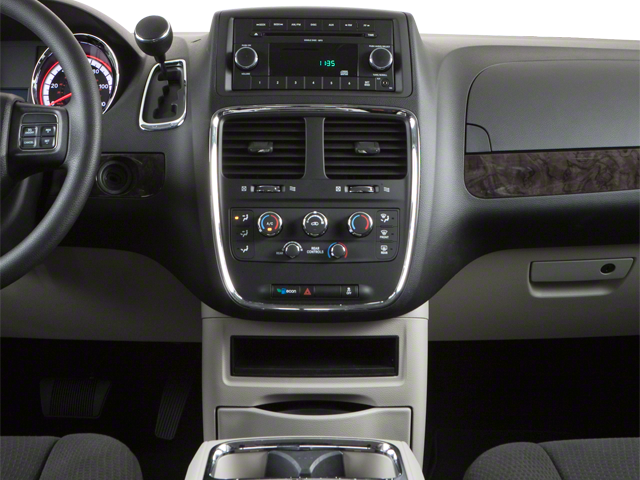

• Air conditioning w/3-zone temp control
• Air conditioning w/3-zone temp control
• Rear air conditioning w/heater
• Rear window defroster
• Air filter

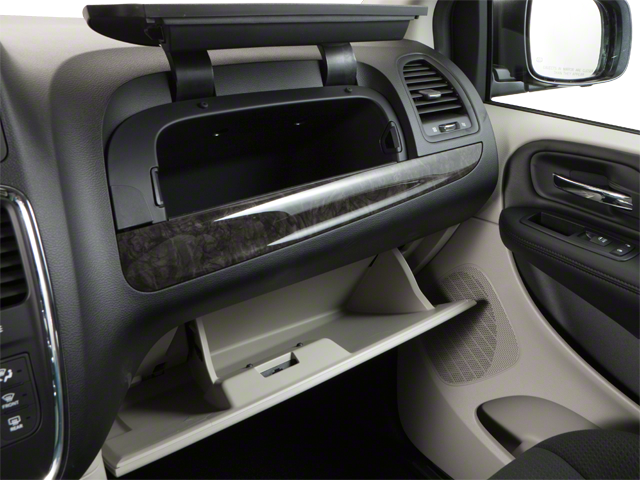

• Dual glove boxes
• 12V DC front & rear pwr outlets
• Overhead console
• Observation mirror
• Driver side sun visor w/mirror
• Passenger side sun visor w/mirror
• Assist handles
• Front courtesy/map lamps
• Door courtesy lamps
• Rear dome lamp
• Liftgate flood lamp
• Rear seatback grocery bag hooks
• LH rear quarter storage bin

• 4-wheel anti-lock disc brakes
• Electronic stability program
• Advanced multi-stage front air bags
• Driver knee-bolster air bag
• Supplemental front seat side air bags
• Supplemental side curtain air bags for all rows
• Rear child safety locks
• LATCH ready child seat anchor system
• Tire pressure monitor
• Dual note electric horn

3.6L VVT 24-VALVE V6 FLEX FUEL ENGINE ($0)

• (STD)

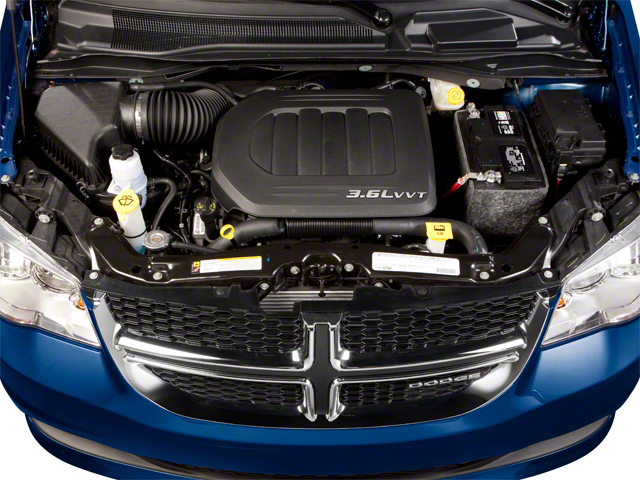

• 3.6L VVT 24-valve V6 flex fuel engine
• Engine oil cooler
• HD transmission oil cooler
• HD engine cooling
• HD radiator
• Front wheel drive
• Autostick automatic transmission
• 730-amp maintenance-free battery
• 160-amp alternator
• Touring suspension
• Pwr rack & pinion steering
• 16" wheel covers
• Compact spare tire
• Tire carrier winch
• Body-color fascias
• Body-color bodyside molding
• Belt moldings
• Black/bright grille
• Halogen quad headlamps
• Headlamp time-delay off
• Fold-away heated pwr mirrors
• Variable intermittent windshield wipers
• Rear window wiper/washer
• Manual right sliding door w/glass
• Manual left sliding door w/glass
• Body-color door handles
• (6) speakers
• Fixed long mast antenna
• Manual adjustable seats
• Active head restraints
• Floor console w/cupholder
• Carpet flooring
• Body-color sill applique
• Luxury steering wheel
• Tilt/telescopic steering wheel column
• Instrument panel
• Instrument cluster w/tachometer
• Lower instrument panel cubby bin
• 120 MPH primary speedometer
• Outside temp display
• Non adjustable pedals
• Tip start
• Speed control
• Rear window defroster
• Air filter
• Dual glove boxes
• 12V DC front & rear pwr outlets
• Overhead Console
• Observation mirror
• Driver side sun visor w/mirror
• Passenger side sun visor w/mirror
• Assist handles
• Front courtesy/map lamps
• Door courtesy lamps
• Rear dome lamp
• Liftgate flood lamp
• Rear seatback grocery bag hooks
• LH rear quarter storage bin
• 4-wheel anti-lock disc brakes
• Electronic stability program
• Advanced multi-stage front air bags
• Driver knee-bolster air bag
• Supplemental Front Seat Side Air Bags
• Supplemental side curtain air bags for all rows
• Rear child safety locks
• LATCH ready child seat anchor system
• Tire Pressure Monitor
• Dual note electric horn

• Vehicle
• EPA Classification: 2WD Minivan
• Mileage
• Fuel Economy Est-Combined (MPG): 20
• EPA Fuel Economy Est - City (MPG): 17
• EPA Fuel Economy Est - Hwy (MPG): 25
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 700
• Maximum Alternator Capacity (amps): 160
• Cooling System
• Total Cooling System Capacity (qts): 10.3
• Weight Information
• Base Curb Weight (lbs): 4510
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): - TBD -
• Dead Weight Hitch - Max Tongue Wt. (lbs): - TBD -
• Wt Distributing Hitch - Max Trailer Wt. (lbs): - TBD -
• Wt Distributing Hitch - Max Tongue Wt. (lbs): - TBD -
• Suspension
• Suspension Type - Front: MacPherson Strut
• Suspension Type - Rear: Twist-beam
• Suspension Type - Front (Cont.): w/Coil Springs
• Suspension Type - Rear (Cont.): w/Coil Springs
• Shock Absorber Diameter - Front (mm): - TBD -
• Shock Absorber Diameter - Rear (mm): - TBD -
• Stabilizer Bar Diameter - Front (in): - TBD -
• Stabilizer Bar Diameter - Rear (in): - TBD -
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 11.9 x 1.1
• Rear Brake Rotor Diam x Thickness (in): 12.0 x 0.5
• Tires
• Front Tire Order Code: TX4
• Rear Tire Order Code: TX4
• Spare Tire Order Code: TBK
• Front Tire Size: P235/60R16
• Rear Tire Size: P235/60R16
• Spare Tire Size: Compact
• Wheels
• Front Wheel Size (in): 16 x 6.5
• Rear Wheel Size (in): 16 x 6.5
• Spare Wheel Size (in): Compact
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr Rack & Pinion
• Steering Ratio (:1), Overall: 14.3
• Lock to Lock Turns (Steering): 2.9
• Turning Diameter - Curb to Curb (ft): 39.1
• Turning Diameter - Wall to Wall (ft): - TBD -
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 20.0
• Exterior Dimensions
• Wheelbase (in): 121.2
• Length, Overall (in): 202.8
• Width, Max w/o mirrors (in): 78.7
• Height, Overall (in): 67.9
• Track Width, Front (in): 65.6
• Track Width, Rear (in): 64.8
• Min Ground Clearance (in): 5.6
• Rear Door Opening Height (in): - TBD -
• Rear Door Opening Width (in): - TBD -
• Liftover Height (in): 24.4

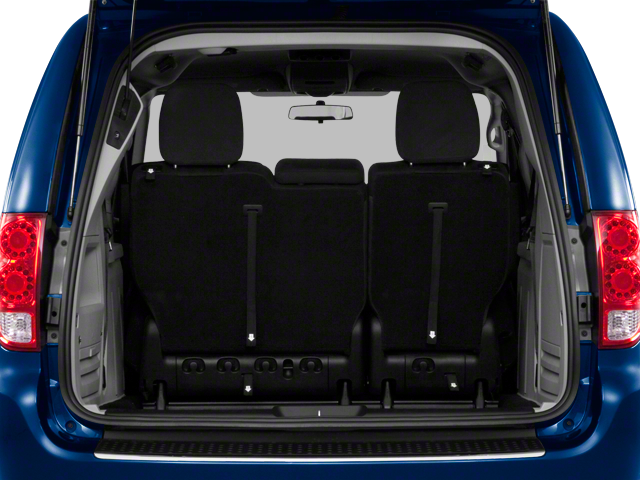

• Cargo Area Dimensions
• Cargo Area Length @ Floor to Seat 1 (in): - TBD -
• Cargo Area Length @ Floor to Seat 2 (in): - TBD -
• Cargo Area Length @ Floor to Seat 3 (in): - TBD -
• Cargo Area Width @ Beltline (in): - TBD -
• Cargo Box Width @ Wheelhousings (in): 49.0
• Cargo Box (Area) Height (in): 46.2
• Cargo Volume to Seat 1 (ft³): 143.8
• Cargo Volume to Seat 2 (ft³): 83.3
• Cargo Volume to Seat 3 (ft³): 33.0
• Interior Dimensions
• Passenger Capacity: 7
• Passenger Volume (ft³): 163.5
• Front Head Room (in): 39.8
• Front Leg Room (in): 40.7
• Front Shoulder Room (in): 63.7
• Front Hip Room (in): 58.4
• Second Head Room (in): 39.3
• Second Leg Room (in): 36.5
• Second Shoulder Room (in): 64.1
• Second Hip Room (in): 65.0
• Third Head Room (in): 37.9
• Third Leg Room (in): 32.7
• Third Shoulder Room (in): 62.0
• Third Hip Room (in): 48.7
• Summary

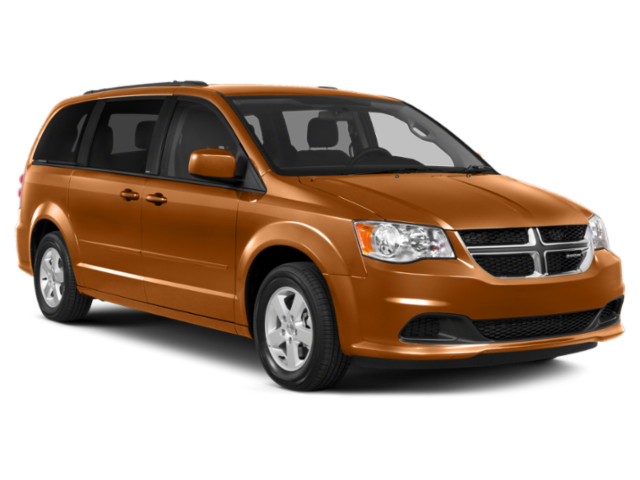

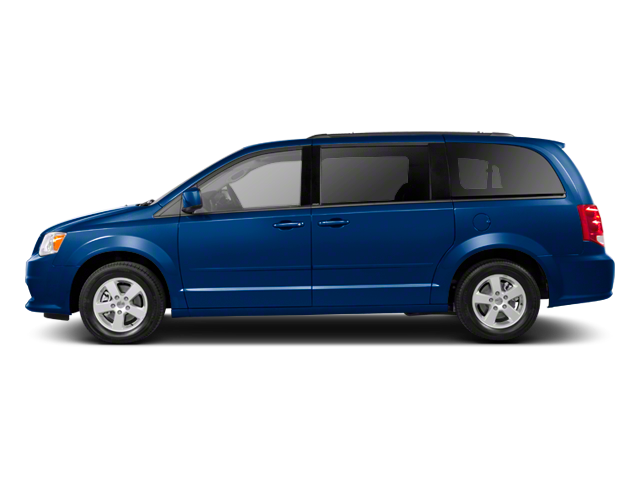

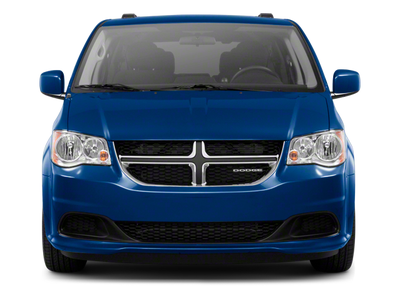

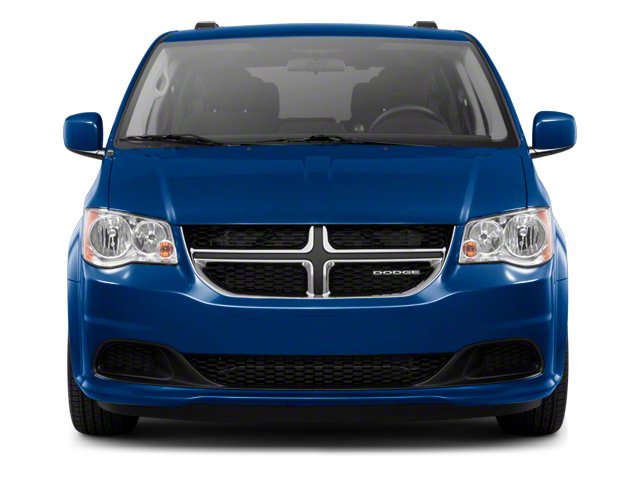

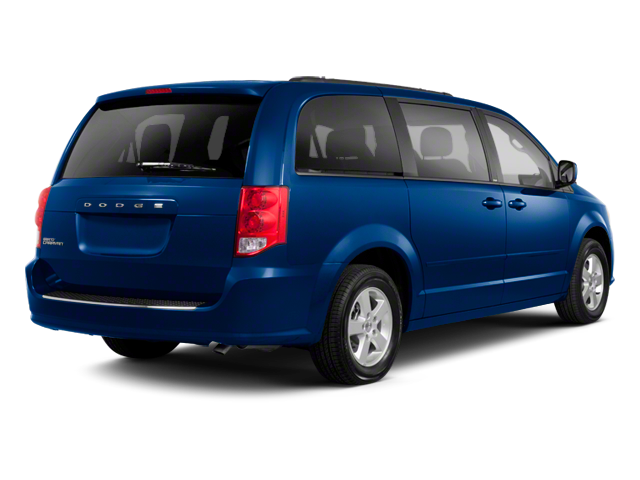

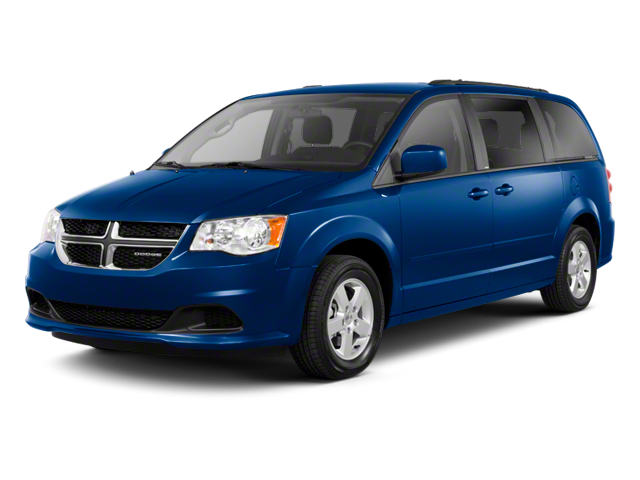

• Vehicle Name: Dodge Grand Caravan
• Body Style: Passenger Van
• Emissions
• EPA Greenhouse Gas Score: 4
• Tons/yr of CO2 Emissions @ 15K mi/year: 9.1
